GEN 4 Pedestal
Beyond the third generation: non-heating board, smart management.

GEN 4 Pedestal
Beyond the third generation: non-heating board, smart management.

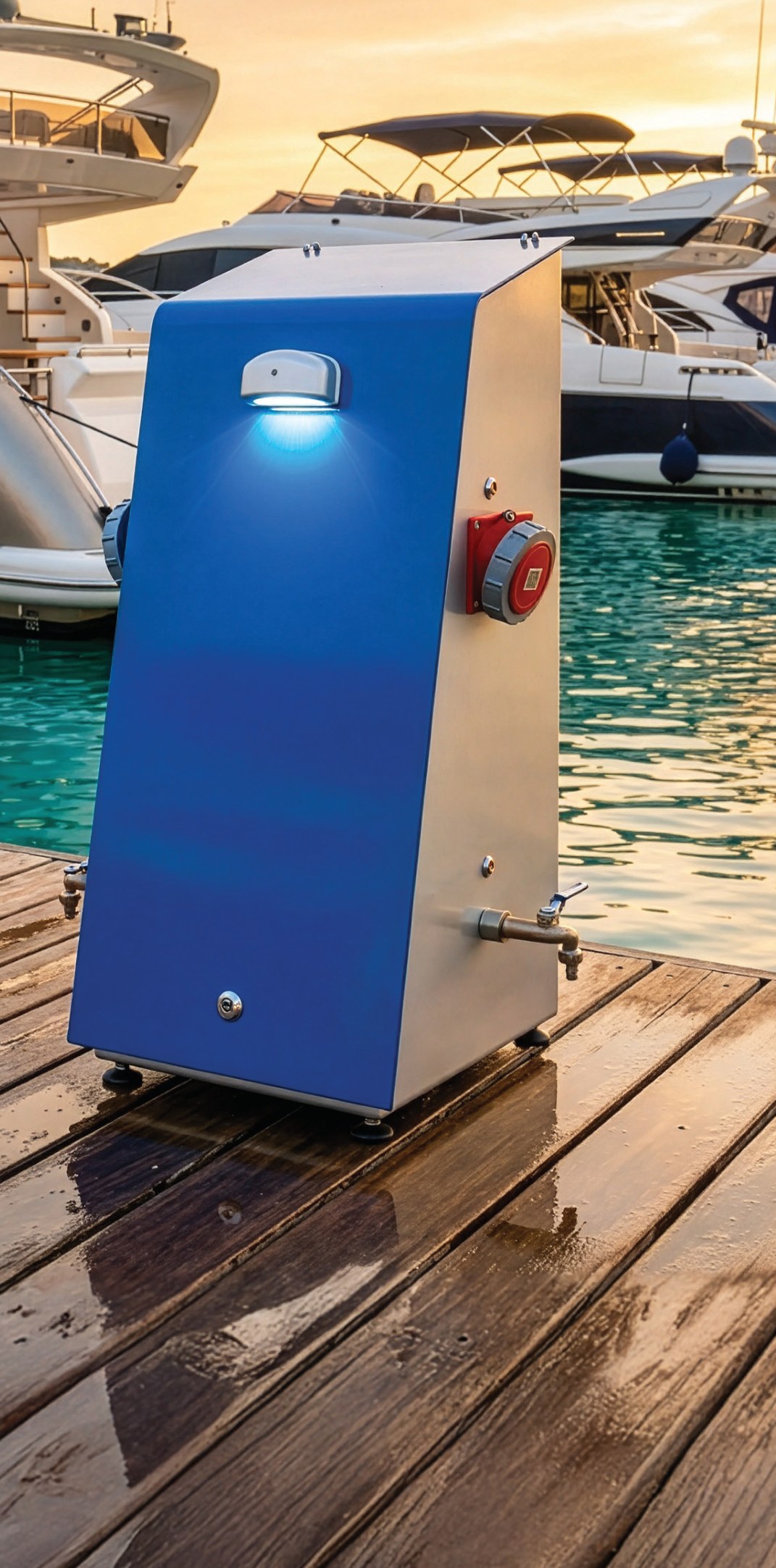

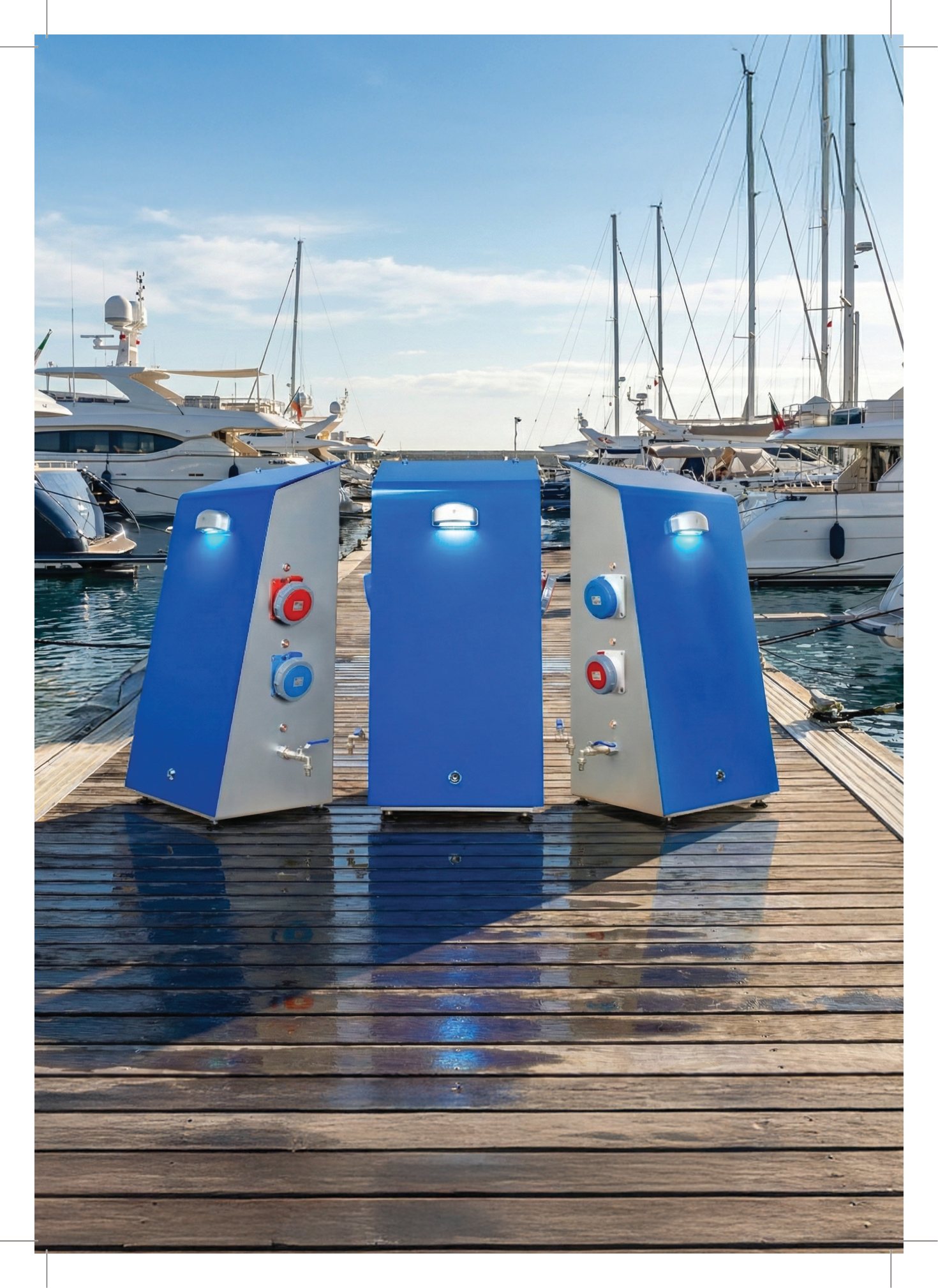

The flagship pedestal for marinas and yachts, configurable up to 4 electricity + 4 water outputs with non-heating 24V DC board technology.
GEN 4 is the most advanced pedestal developed by BeyMarine from years of field experience. Its main body is aluminium with a fiber front cover; the IP65-compliant structure provides high UV and salt resistance.
Its most important difference is that high current never passes through the mainboard. Running on 24V DC low current, the board does not heat up, eliminating frequent failures caused by hot weather and high current.
Explore the Pedestal
Click the components to explore their features
Technical Specifications
Body
| Body Material | Aluminium main body, fiber front cover |
| Dimensions | 35 × 35 × 80 cm |
| Access Doors | 2 pcs |
| Water Resistance | IP65 compliant |

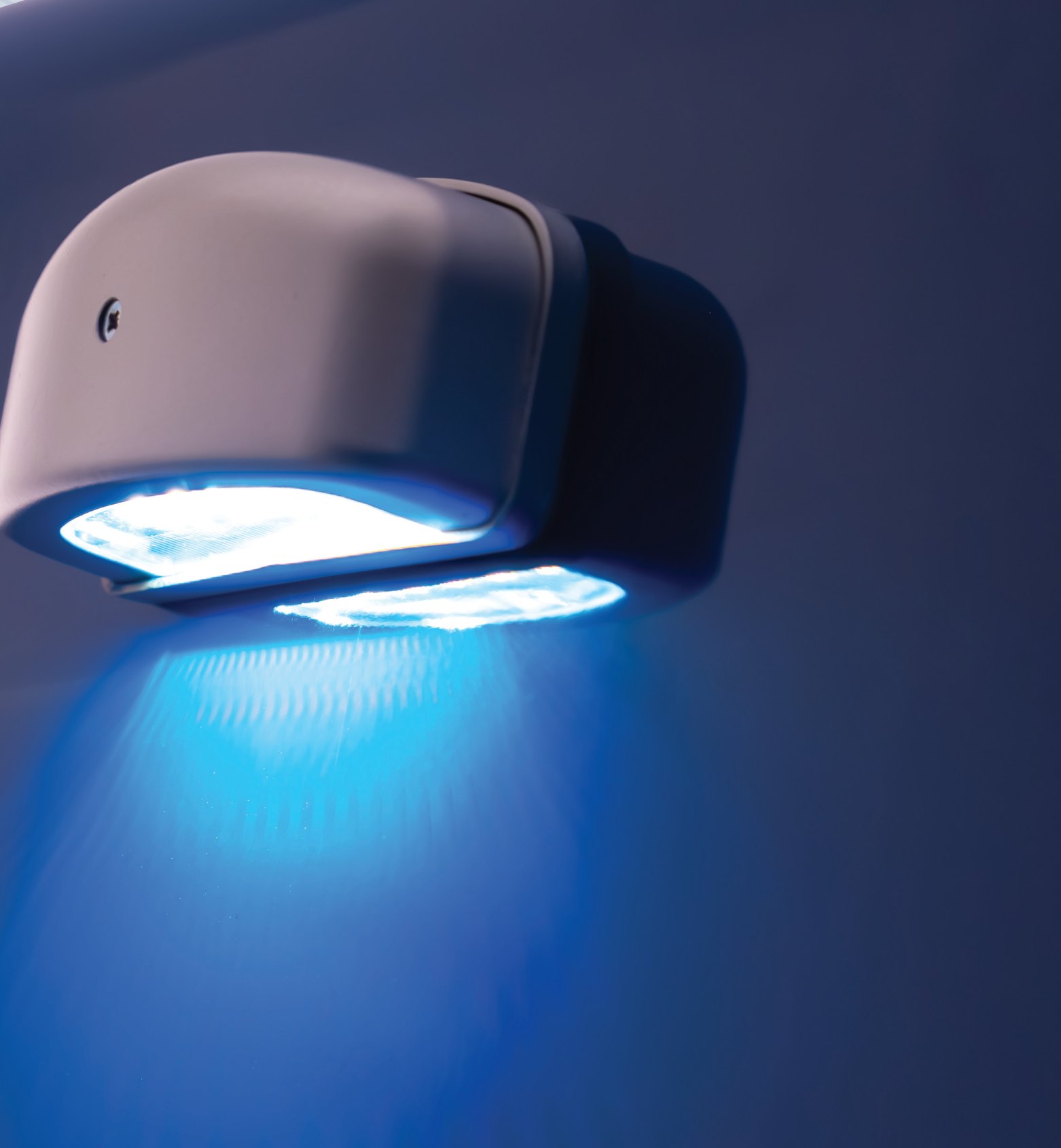

Lighting
| Ambient Lighting | One-directional, color-selectable lighting |
| Ambient Light Type | 12V DC White Led |
| Signal Led | Green: Available / Red: Busy |
| Signal Led Type | 12V DC RGB Led |
Electrical Output
| Outlet Count | Maximum 4 pcs |
| Outlet Safety | Residual current protection & breaker per output |
| Outlet Power | 16A/240VAC – 250A/400VAC (optional) |
| Residual Current | 30mA |
| Earth Line | Max. 5V |
| Energy Meter | Pulse output, digital control, kWh consumption metering |
Water Output
| Tap Count | Maximum 4 pcs (optional) |
| Consumption Metering | Flowmetric system with M³ pulse output |
| Flow Control | 9-36V DC type solenoid valve |
Mainboard
| Board Power Draw | 12-24V 2A DC |
| Board Supply | 24V 4A switch mode DC power supply |
| Output Configuration | 8, 16, 32 port output configuration (electricity, water) |
| Wireless Antenna | 2.4 GHz |
| Backup Unit | SD Card |
Operating
| Operating Temperature | -20 / +70 °C |
| Operating Humidity | 95% humidity (non-condensing) |
Interested in this pedestal?
Get a tailored configuration and quote for your marina.
